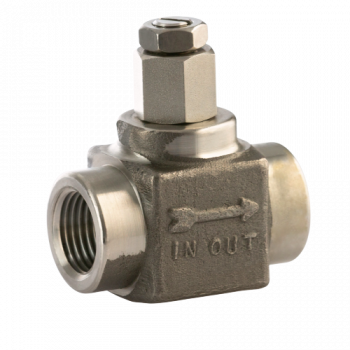

Pressure limiting valve
Material:
Available in Brass, SS 300, SS 316, and Monel
Description:
The adjustable automatic action Pressure Limiting Valve - Overpressure Protector Model 255, 2550, and 71620, is for use with liquid & gases to protect systems from over range at operating pressure up to 15,000 psi. The valve automatically shuts off pressure to the gauge if the pressure rises above the adjustable pre-set pressure, and automatically restores the instrument on-line when pressure falls below the pre-set value.

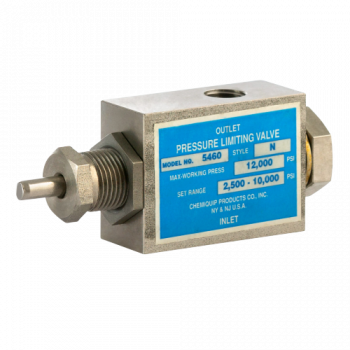

High-Pressure limiting valve
Material:
Available in SS 300.
Description:
The adjustable automatic action Pressure Limiting Valve - Overpressure Protector Model 5460 & 5500, is for use with liquid & gases to protect systems from over range at operating pressure up to 22,500 psi. The valve automatically shuts off pressure to the gauge if the pressure rises above the adjustable pre-set pressure, and automatically restores the instrument on-line when pressure falls below the pre-set value.
